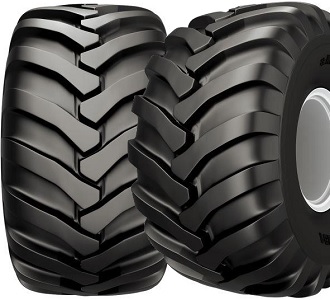

500/60-26.5 Alliance 331 Forestry Steel HF-3 M (22 Ply), 170A8 100%
Stock Number:
33140445
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
The Alliance 331 Flotation diagonal forestry tire is developed mainly for use on modern forestry Harvesters and Forwarders. In addition, the tire is highly applicable for wheeled excavators, loaders and dumpers, working under heavy terrain conditions.
- Specifically designed
- Huge tire volume
- Strong nylon casing and steel belts, high undertread gauge, strong and thick sidewalls, special tread compound and protective mud guard
- For high traction abilities, low slip and low fuel consumption
- Contributes to low soil compaction and ride comfort
- Promise long tire life under heavy working conditions in the forests, as well as, smooth and long lasting work in agriculture
| Stock No. | 33140445 |
| Brand | Alliance |
| Model/Style | 331 Forestry Steel |
| Tread Style | (HF-3) High Flotation Deep Tread |
| Tire Size | 500/60-26.5 |
| Rim Width | 16" |
| Preferred Rim | |
| RCI Group | 39 (49.66" - 52.30") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 259.0 |
| Diameter | 50.0 |
| Width | 19.7 |
| Rolling Circumference | 151.1 |
| Static Load Radius | 23.2 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | M (22 Ply) |
| Load Index/Speed Rating | 170A8 |
| Load Limit Single | 13200 lbs / 5987 kgs |
| Load Limit Dual | 11616 lbs / 5268 kgs |
| Load Limit Triple | 10824 lbs / 4909 kgs |
| Max PSI | 0 |
